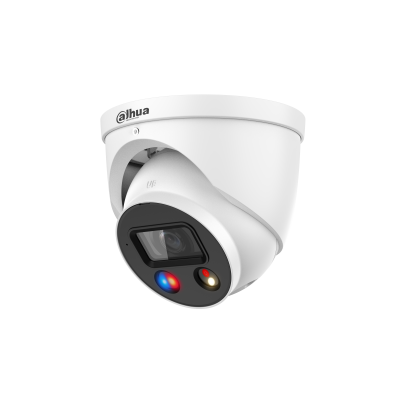

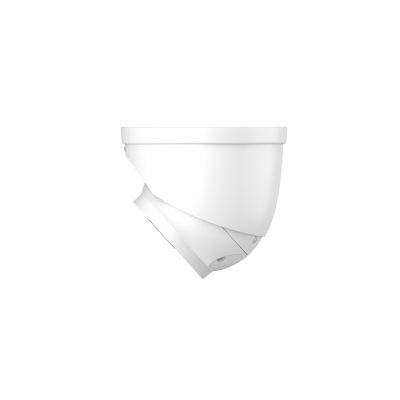

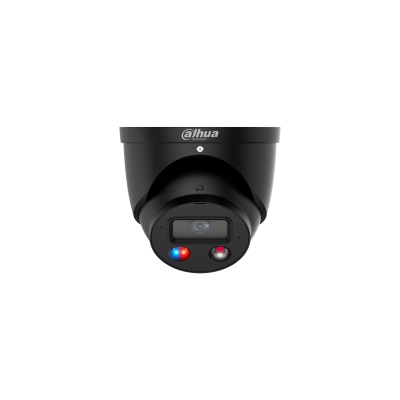

Dahua IPC-HDW3649H-AS-PV-ANZ-S2-2.8mm | 6MP Smart Dual Illumination Active Deterrence WizSense Camera-2.8mm
Original price was: $420.00.$282.00Current price is: $282.00.
> 6-MP 1/2.7″ CMOS image sensor, low luminance, and high definition image.
> Outputs max. 6 MP (3072 ×2048)@25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in warm light and IR LED; the max. IR illumination distance is 30 m and warm light distance is 30 m.
> ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human).
> Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; buit-in dual Mic; 1-ch speaker; support two-way talk.
> 12 VDC/PoE power supply.
> IP67 protection.
> Sound and light alarm (red and blue lights).
> SMD 4.0.
> Supports AI SSA and one-tap arming and disarming.
> SMD area can be set in warm light areas that support triggering alarms.
| Color |
White ,Black |
|---|---|
| In/Out |
Outdoor & Indoor |
| Lens Type |
Fixed Lens |
| Lens Size |
2.8mm |
| Mic & Audio |
Build-in mic & spk two-way audio |
| Night Vision |
Day Colour/Night B&W |
| Object Detection |
Human/Vehicle Detection |
| Resolution |
6MP |
| Wiring |
PoE |
Description
| Camera | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Image Sensor | 1/2.7″ CMOS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Max. Resolution | 3072 (H) × 2048 (V) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| ROM | 256 MB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| RAM | 1 G | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Scanning System | Progressive | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Min. Illumination | 0.003 lux@F1.0 (Color, 30 IRE) 0.0003 lux@F1.0 (B/W, 30 IRE) 0 lux (Illuminator on) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| S/N Ratio | >56 dB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Illumination Distance | Up to 30 m (98.43 ft) (IR) Up to 30 m (98.43 ft) (Warm light) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Illuminator On/Off Control | Auto;Manual | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Illuminator Number | 1 (IR LED); 1 (Warm light) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Angle Adjustment | Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360° | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Lens | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Lens Type | Fixed-focal | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Lens Mount | M12 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Focal Length | 2.8 mm; 3.6 mm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Max. Aperture | F1.0 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Field of View | 2.8 mm: H: 97°; V: 70°; D: 128° 3.6 mm: H: 78°; V: 58°; D: 102° | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Iris Control | Fixed | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Close Focus Distance | 2.8 mm: 1.5 m (4.92 ft) 3.6 mm: 2.2 m (7.22 ft) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| DORI Distance | Lens | Detect | Observe | Recognize | Identify | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 2.8 mm | 66.0 m (216.54 ft) | 26.4 m (86.61 ft) | 13.2 m (43.31 ft) | 6.6 m (21.65 ft) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 3.6 mm | 78.0 m (255.91 ft) | 22.2 m (102.36 ft) | 15.6 m (51.18 ft) | 7.8 m (25.59 ft) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
| DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Intelligence | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| IVS (Perimeter Protection) | Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| SMD | SMD 4.0 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| AcuPick | Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| AI SSA | Adopt deep learning algorithms to adjust the parameters of the image to suit the conditions. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Video | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Smart Codec | Smart H.265+; Smart H.264+ | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| AI Coding | AI H.265 (Compression rate ≥25%) AI H.264 (Compression rate ≥25%) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Video Frame Rate | Main stream: 3072 × 2048 @(1 fps–25/30 fps) Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) Third stream: 1920 × 1080@(1–25/30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Stream Capability | 3 streams | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Resolution | 6M (3072 × 2048; 5M (2592 × 1944); 4M (2688 × 1520/2560 × 1440); 3M (2304×1296/2048 × 1536); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Bit Rate Control | CBR/VBR/ABR | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Video Bit Rate | H.264: 3 kbps–16384 kbps; H.265: 3 kbps–16384 kbps | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Day/Night | Auto(ICR)/Color/B/W | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| BLC | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| HLC | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| WDR | 120 dB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Scene Self-adaptation (SSA) | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| White Balance | Auto; natural; street lamp; outdoor; manual; regional custom | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Gain Control | Auto | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Noise Reduction | 3D NR | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Motion Detection | OFF/ON (4 areas, rectangular) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Region of Interest (RoI) | Yes (4 areas) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Smart Illumination | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Defog | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Mirror | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Privacy Masking | 4 areas | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| LDC | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Built-in MIC | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Built-in Speaker | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio Compression | PCM; G.711a; G.711Mu; G.726; G.723 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Alarm | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; intensity change; voltage detection; external alarm; SMD; security exception | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Network | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Network Port | RJ-45 (10/100 Base-T) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| SDK and API | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Network Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP; P2P | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Interoperability | ONVIF (Profile S; Profile G;Profile T); CGI | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| User/Host | 20 (Total bandwidth: 64 M) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Storage | FTP;SFTP; Micro SD card (support max. 256 GB); NAS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Browser | IE: IE 9/11 Chrome Firefox | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Management Software | Smart PSS Lite; DSS; DMSS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Mobile Client | iOS;Android | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Cyber Security | Video encrypton;Firmware encrypton;Confguraton encrypton;Digest;WSSE;Account lockout;Security logs;IP/ MAC fltering;Generaton and importng of X.509 ce rtfcaton;syslog;HTTPS;802.1x;Trusted boot;Trusted executon;Trusted upgrade | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Certification | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Certifications | CE-LVD: EN 62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Port | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio Input | 1 channel (RCA port) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio Output | 1 channel (RCA port) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Alarm Input | 1 channel in: wet contact, 5 mA 3–5 VDC | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Alarm Output | 1 channel out: wet contact, 300 mA 12 VDC | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power Supply | 12 VDC; PoE | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power Consumption | Basic: 3.7 W (12 VDC); 4.8 W (PoE) Max. (H.265+WDR+ warm light+siren and light active deterrence + intelligence on): 8.3 W (12 VDC); 8.8 W (PoE) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Environment | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Operating Humidity | ≤95% | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Protection | IP67 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Structure | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Casing Material | Metal | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Product Dimensions | Φ122.0 mm × 110.9 mm (4.80″ × Φ4.37″) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Net Weight | 0.75 kg (1.65 lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Gross Weight | 0.92 kg (2.03 lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
